Series
3.2205

Sliding Clamps

single acting, with spring return
max. operating pressure 400 bar
clamping force from 19 kN to 78 kN
Sliding Clamps
Downloads
Catalogue sheet
ENDEESFRITUS
Operating instructions
Information Series
Description

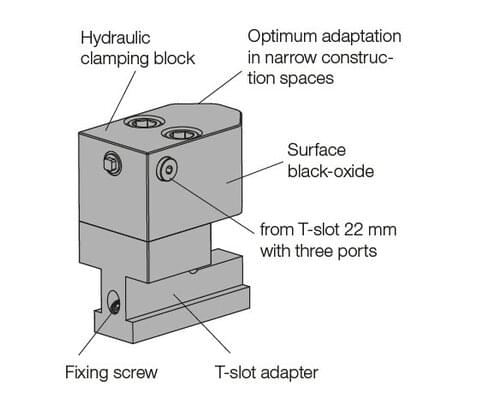

3.2205 Sliding Clamps

Application

The sliding clamp is a hydraulic clamping element, used with low space requirements for
clamping and locking on machines and plants, on press bed and ram.
Due to their handy design, slide clamps are particularly suitable for use in confined spaces.

The clamps are suitable for use in ambient temperatures up to a maximum of 120 °C.















Video

Advantages

  • High clamping force combined with compact design and low weight
  • The clamping block is rounded, allowing for optimal adaptation in narrow construction spaces
  • T-slot 14, 18, 22, 28 and 36 mm available
  • Total stroke 8 and 12 mm
  • Standardization of the die width and depth is not required
  • Easy to retrofit
Sliding clamp with T-slot adapter in press bed and ram, roller bars and carrying consoles for tool insertion
Sliding clamp with T-slot adapter in press bed and ram, roller bars and carrying consoles
Sliding clamp with T-slot adapter in press bed and ram
Sliding clamp with T-slot adapter in press bed and ram
Accessories (16)
Item no. CAD data Description
Item no.
270010131
CAD data
/
Description
High-pressure hose ND4 / L=600 with wire braiding internal diameter: 4 mm length: 600 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
Item no.
270010133
CAD data
/
Description
High-pressure hose ND4 / L=800 with wire braiding internal diameter: 4 mm length: 800 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
Item no.
270010137
CAD data
/
Description
High-pressure hose ND4 / L=1200 with wire braiding internal diameter: 4 mm length: 1200 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
Item no.
270010141
CAD data
/
Description
High-pressure hose ND4 / L=1600 with wire braiding internal diameter: 4 mm length: 1600 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
Item no.
2754180
CAD data
Description
Bracket to accommodate a sliding clamp without spacer bar for T-slot 18 mm *as per catalogue sheet WZ 3.2202
Item no.
2754220
CAD data
Description
Bracket to accommodate a sliding clamp without spacer bar for T-slot 22 mm *as per catalogue sheet WZ 3.2202
Item no.
2754280
CAD data
Description
Bracket to accommodate a sliding clamp without spacer bar for T-slot 28 mm *as per catalogue sheet WZ 3.2202
Item no.
2754500
CAD data
Description
Spacer bar for bracket sliding clamp for T-slot 18, 22 or 28 mm specify distance dimension “x” when ordering *as per catalogue sheet WZ 3.2202
Item no.
504951400
CAD data
/
Description
Spacer bar for bracket sliding clamp for T-slot 14 mm specify distance dimension “x” when ordering *as per catalogue sheet WZ 3.2202
Item no.
550650003
CAD data
/
Description
Hose holder made from Delrin *as per data sheet WS12.3820
Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
