2.1300

Hollow Piston Cylinders

single acting
without spring return
max. operating pressure 400 bar
Hollow Piston Cylinders
Downloads
Catalogue sheet
ENDEESFRIT
Operating instructions
Information Series
Description

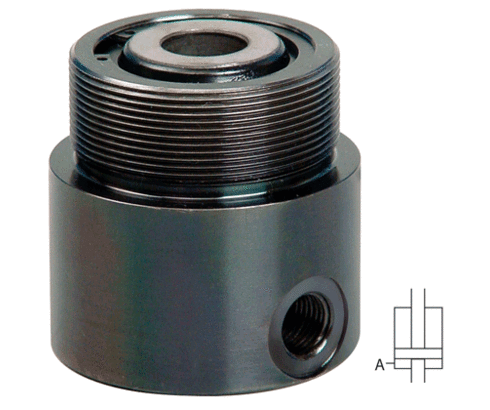

Hollow Piston Cylinders 2.1300

single acting without spring return, as pull or push cylinder

Installation is possible by insertion, screwing in or manifold mounting in any position. The clamping force is generated by applying hydraulic pressure to the piston, and the piston is returned by external force effect. The piston is provided with a through hole and is hardened and ground. The housing of the hollow piston cylinder is made of high alloy steel, the surface is black oxided.

Hollow Piston Cylinders 2.1300
Hollow Piston Cylinders 2.1300

Application

Hollow  piston  cylinders  are  used  in  connection with tie rods, screws and threaded rods, for clamping and locking dies on presses and machines.


Advantages

  • Flat and compact design
  • Jerkyless piston movement
  • Stroke limitation designed for max. operating pressure
  • Easy to retrofit
  • Ideal force transmission
Video
Products (4)
type
with through hole (4)
stroke [mm]
functioning
single acting without spring return (4)
max. operating pressure [bar]
400 (4)
max. clamping force [kN]
clamping principle
hydraulic clamping (4)
through hole Ø [mm]
spherical disk
without (4)
Item no. CAD datatypestroke [mm]functioningmax. operating pressure [bar]
Item no.
1303003
CAD data
type
with through hole
stroke [mm]
12
functioning
single acting without spring return
max. operating pressure [bar]
400
Properties
Item no.
1305003
CAD data
type
with through hole
stroke [mm]
12
functioning
single acting without spring return
max. operating pressure [bar]
400
Properties
Item no.
1307003
CAD data
type
with through hole
stroke [mm]
15
functioning
single acting without spring return
max. operating pressure [bar]
400
Properties
Item no.
1309003
CAD data
type
with through hole
stroke [mm]
15
functioning
single acting without spring return
max. operating pressure [bar]
400
Properties
Item no.
1303003
type
with through hole
stroke [mm]
12
functioning
single acting without spring return
max. operating pressure [bar]
400
max. clamping force [kN]
34.8
clamping principle
hydraulic clamping
through hole Ø [mm]
16.5
spherical disk
without
Item no.
1305003
type
with through hole
stroke [mm]
12
functioning
single acting without spring return
max. operating pressure [bar]
400
max. clamping force [kN]
54
clamping principle
hydraulic clamping
through hole Ø [mm]
20.5
spherical disk
without
Item no.
1307003
type
with through hole
stroke [mm]
15
functioning
single acting without spring return
max. operating pressure [bar]
400
max. clamping force [kN]
84
clamping principle
hydraulic clamping
through hole Ø [mm]
24.5
spherical disk
without
Item no.
1309003
type
with through hole
stroke [mm]
15
functioning
single acting without spring return
max. operating pressure [bar]
400
max. clamping force [kN]
137.2
clamping principle
hydraulic clamping
through hole Ø [mm]
30.5
spherical disk
without
Application examples
Application example 1

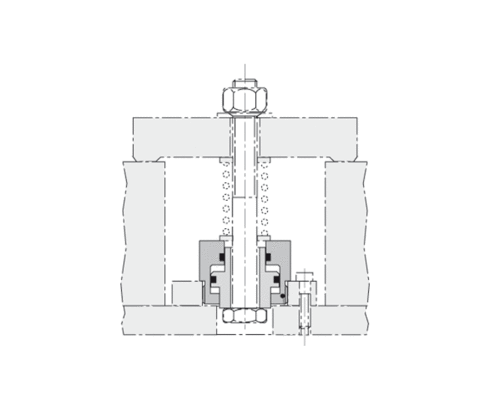

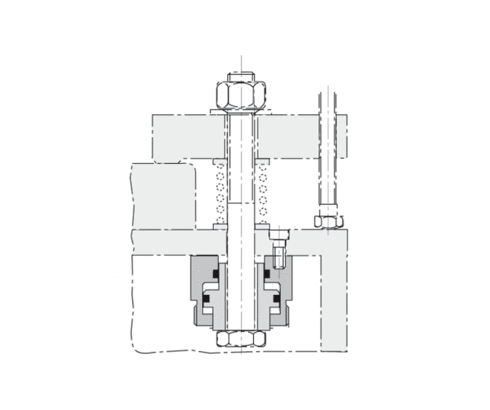

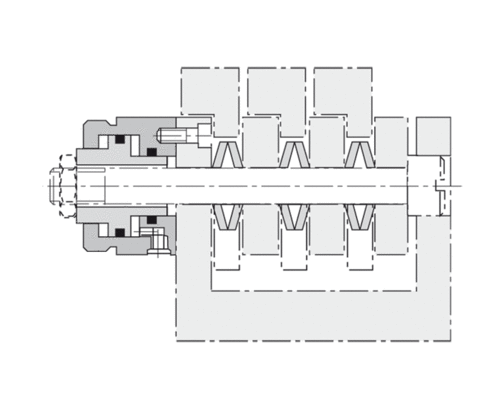

Hollow -piston cylinders 2.1300, single-acting without spring return, as pull or push cylinder.

Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
