Die Changing Carts RWA 1600
without and with push-pull system, max. load capacity 1,600 kg
with electro-hydraulic lifting platform with die changing table
without and with push-pull system, max. load capacity 1,600 kg
Application
TThe die changing cart RWA 1600 is used for the transport and the change of pressing and
punching dies as well as injection and casting moulds up to a weight of 1,600 kg.
Description

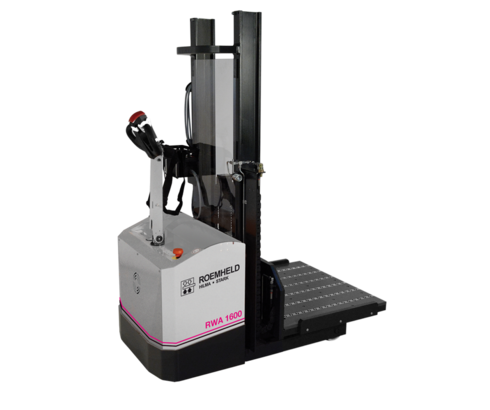

The die changing cart RWA 1600 is an electrically driven walking and lifting cart, specifically
equipped for the safe transport and change of dies. The electro-hydraulic lifting platform is designed to function as a die changing table with integrated hydraulic ball bars, which facilitate the easy insertion of the dies onto the press table.
Versions
Die changing cart RWA 1600 are available with 4, 6 or 8 installed ball bars. A version with a
quick-disconnect coupling for external ball or roller bars is available.

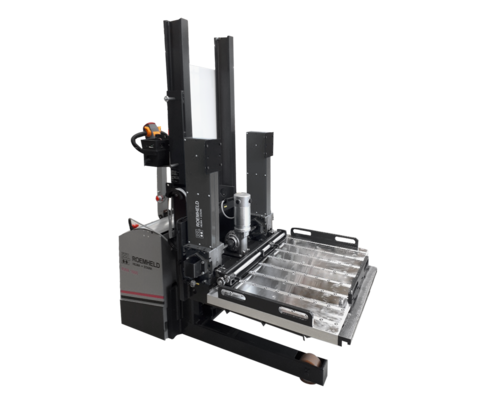

Die Changing Carts RWA 1600 with push-pull system
The push-pull system allows the user to automatically extend and retract the die at the push of a button without having to be in the danger zone. The dies are moved at a speed of 33 mm/s. Moving at creep speed enables precise positioning of the dies in the press table.
To load and unload the dies using the push-pull system, the dies must be fitted with a die hook (see accessories on page 3).
Safety docking station
The docking bars on the changing table and on the press table ensure for precise locking of the die changing cart. Ball inserts are lifted by successful docking to the press table. The die weight is supported on the press table.
Accessories and Optional equipment
see catalogue sheet WZ 8.8902
| Item no. | CAD data | type | stroke [mm] | series | max. load capacity [kg] | |
|---|---|---|---|---|---|---|
|
Item no.
|
Properties
| |||||
|
Item no.
|
Properties
| |||||
|
Item no.
|
Properties
| |||||
|
Item no.
|
Properties
| |||||
|
Item no.
|
Properties
| |||||
|
Item no.
|
Properties
| |||||
|
Item no.
|
Properties
| |||||
|
Item no.
|
Properties
| |||||
|
Item no.
|
Properties
| |||||
|
Item no.
|
Properties
|
| Item no. | CAD data | Description |
|---|---|---|
|
Item no.
|
Description

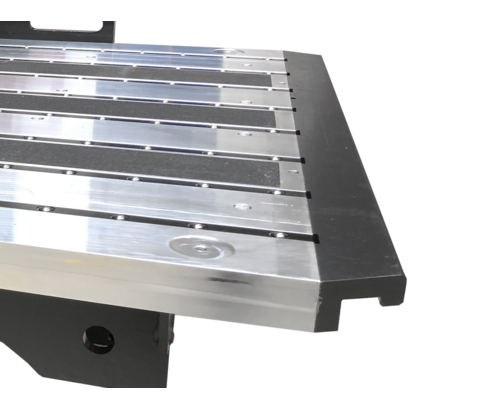

Docking bar
for fixing on the changing cart
L = 1150 mm
as per catalogue sheet WZ 8.8902
|
|
|
Item no.
|
Description
Docking bar on other machines / presses
for fixing at the machine / press
L = 576 mm
as per catalogue sheet WZ 8.8902
|
|
|
Item no.
|
Description
Battery charger
E 230 G 24/25 B50FP
Charging time: 10 h (at 240 Ah)
Code class: IP 21
as per catalogue sheet WZ 8.8902
|
|
|
Item no.
|
Description
Die hook
for semi-automatic push-pull docking device
as per catalogue sheet WZ 8.8902
|
|
|
Item no.
|
Description
Docking bars for cart with bridge
as per catalogue sheet WZ 8.8901
|
