Series

Carrying Consoles, Swivelling to the Left and Right

for easy and efficient die change on the press bed
load per pair 10 to 60 kN

Downloads

Catalogue sheet

DE EN FR ES IT

Operating instructions

Information Series

Description

8.18352 Carrying console, swivelling

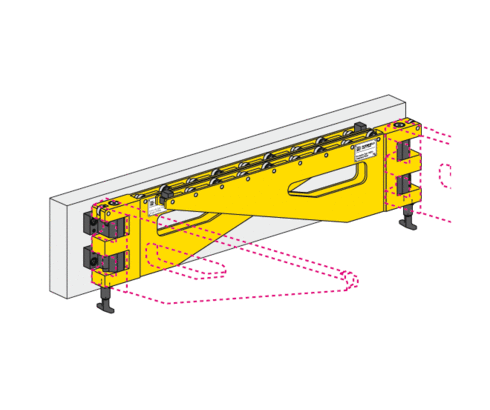

This console is permanently fixed to the press bed and can be pivoted into the die changing position.
This type is particularly recommended when the available space in front of the press bed is limited, or if removal and intermediate storage of the console is not possible or wanted.
For carrying rollers, end stop and surface coating, see above.

Videos

Special customer-specific carrying consoles on request

as e.g. ”sliding carrying consoles”

Products (8)

Number

Item no.	CAD data	fixation	max. load/pair [kN]	support length L [mm]
Item no. 818351001	CAD data	fixation swivelling	max. load/pair [kN] 10	support length L [mm] 500	Properties
Item no. 818351002	CAD data	fixation swivelling	max. load/pair [kN] 10	support length L [mm] 1000	Properties
Item no. 818351003	CAD data	fixation swivelling	max. load/pair [kN] 20	support length L [mm] 1000	Properties
Item no. 818351004	CAD data	fixation swivelling	max. load/pair [kN] 20	support length L [mm] 1250	Properties
Item no. 818351105	CAD data	fixation swivelling	max. load/pair [kN] 40	support length L [mm] 1000	Properties
Item no. 818351106	CAD data	fixation swivelling	max. load/pair [kN] 40	support length L [mm] 1250	Properties
Item no. 818351107	CAD data	fixation swivelling	max. load/pair [kN] 60	support length L [mm] 1000	Properties
Item no. 818351108	CAD data	fixation swivelling	max. load/pair [kN] 60	support length L [mm] 1250	Properties
