2.2404

Wedge Clamps for Tapered Clamping Edge

double acting, max. clamping force 50 to 400 kN
with form-fit safety step and position monitoring
Wedge Clamps for Tapered Clamping Edge
Downloads
Catalogue sheet
DEENFRESIT
Operating instructions
Information Series
Description

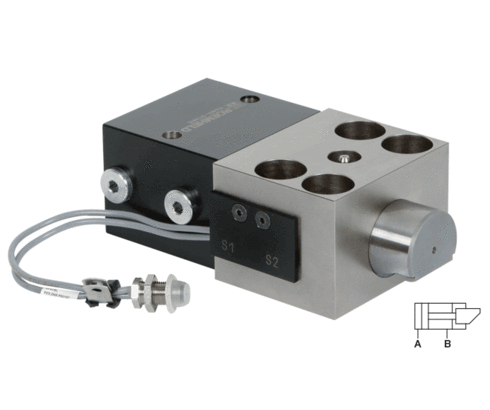

2.2404 Wedge clamps

with form-fit safety step and position monitoring

This patented design has a form-fit safety step in the form of a lug at the clamping bolt, which has the same shape as the adapter on the mould/die clamping edge. In the case of pressure drop (machine failure or down time) the upper mould/die lowers to the safety step onto the safety lug and is safely held by form fit. The clamping bolt can not be returned to the unclamping position and the upper mould/die is safely held.

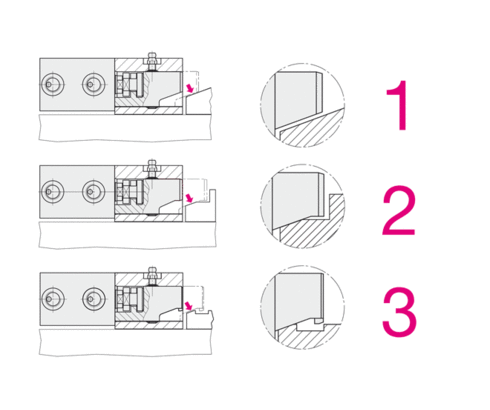

Safety steps
  1. without safety step

  2. with safety step

  3. with form-fit safety step
Products (5)
type
wedge clamp (5)
type
with form-fit safety step (5)
functioning
double acting (5)
for clamping edge
angular (5)
position monitoring
with, at the side (5)
max clamping force [kN]
max. admissible operating force [kN]
max. temperature [°C]
100 (5)
max. operating pressure [bar]
Item no. CAD datatypetypefunctioningfor clamping edge
Item no.
824046000
CAD data
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
Properties
Item no.
824056000
CAD data
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
Properties
Item no.
824066000
CAD data
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
Properties
Item no.
824076000
CAD data
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
Properties
Item no.
824086000
CAD data
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
Properties
Item no.
824046000
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
position monitoring
with, at the side
max clamping force [kN]
50
max. admissible operating force [kN]
65
max. temperature [°C]
100
max. operating pressure [bar]
275
Item no.
824056000
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
position monitoring
with, at the side
max clamping force [kN]
100
max. admissible operating force [kN]
130
max. temperature [°C]
100
max. operating pressure [bar]
350
Item no.
824066000
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
position monitoring
with, at the side
max clamping force [kN]
160
max. admissible operating force [kN]
210
max. temperature [°C]
100
max. operating pressure [bar]
350
Item no.
824076000
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
position monitoring
with, at the side
max clamping force [kN]
250
max. admissible operating force [kN]
320
max. temperature [°C]
100
max. operating pressure [bar]
350
Item no.
824086000
type
wedge clamp
type
with form-fit safety step
functioning
double acting
for clamping edge
angular
position monitoring
with, at the side
max clamping force [kN]
400
max. admissible operating force [kN]
520
max. temperature [°C]
100
max. operating pressure [bar]
350
Accessories (12)
Item no. CAD data Description
Item no.
3300287
CAD data
Description
Drill bushing DIN 179 A 17 x 16 mm as per data sheet B1.738
Item no.
3300288
CAD data
Description
Drill bushing DIN 179 A 21 x 20 mm as per data sheet B1.738
Item no.
3300289
CAD data
Description
Drill bushing DIN 179 A 26 x 20 mm as per data sheet B1.738
Item no.
3300420
CAD data
Description
Drill bushing DIN 179 32 x 25 mm *as per catalogue sheet WZ 2.2401
Item no.
3300430
CAD data
Description
Drill bushing DIN 179 38 x 30 mm *as per catalogue sheet WZ 2.2401
Item no.
510280065
CAD data
/
Description
Adaptor plate for wedge clamps 824066000 with form-fit safety step dimensions 95 x 37 x 80 mm *as per catalogue sheet WZ 2.2404
Item no.
510280066
CAD data
/
Description
Adaptor plate for wedge clamps 824076000 with form-fit safety step dimensions 105 x 39.6 x 80 mm *as per catalogue sheet WZ 2.2404
Item no.
510280067
CAD data
/
Description
Adaptor plate for wedge clamps 824086000 with form-fit safety step dimensions 130 x 55.6 x 105mm *as per catalogue sheet WZ 2.2404
Item no.
510280073
CAD data
/
Description
Adaptor plate for wedge clamps 824046000 with form-fit safety step dimensions 55 x 50 x 20 mm *as per catalogue sheet WZ 2.2404
Item no.
510280074
CAD data
/
Description
Adaptor plate for wedge clamps 824056000 with form-fit safety step dimensions 80 x 70 x 29 mm *as per catalogue sheet WZ 2.2404
Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
