2.2450

Wedge Clamps for Flat Clamping Edge

single acting, operating force 25 up to 120 kN
clamping with spring force and hydraulic unclamping
without and with position monitoring
Wedge Clamps for Flat Clamping Edge
Downloads
Catalogue sheet
ENDEESFRIT
Operating instructions
Information Series
Description
2.2450 Wedge Clamps

single acting, clamping with spring force and hydraulic unclamping,
retention force 25 up to 120 kN, with and without position monitoring

The wedge clamping elements consist of a guide housing with one-piece clamping bolt.
Clamping cycle: the clamping bolt which is inclined by 6° performs an idle stroke and simultaneously a clamping stroke. The clamping bolt is lowered axially onto the clamping edge. The 6° angle, the spring force in the clamping bolt and the frictional engagement at the clamping point create a self-locking connection. The wedge clamping element should preferably be used with position monitoring.



Advantages

  • safe clamping of dies with straight clamping edge
  • high operating safety due to clamping by spring force, inductive and visual position monitoring
  • position monitoring on the left or right side
  • clamping element with self-locking
    dimensions in accordance with Euromap guidelines
  • no clamping edge bevels are required
  • variable clamping edge heights (spacer plates)
  • tolerance of clamping edge height ± 0.5 mm
  • the pressure of the machine hydraulics of 160 bar is sufficient for unclamping
  • very sturdy and compact design
  • housing with stainless coating
  • flexible connecting possibilities by 4 hydraulic Connections



Applications

  • safe clamping of dies with straight clamping edge
  • for clamping of dies in injection moulding machines
  • for clamping of dies on press bed and ram

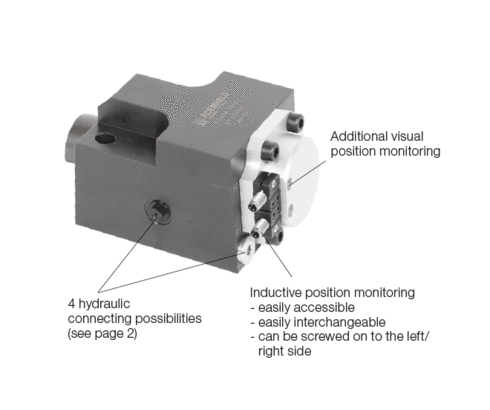

Wedge Clamp 2.2450
Wedge Clamp 2.2450
Products (5)
type
wedge clamp (5)
type
clamping with spring force and hydraulic unclamping (5)
functioning
single acting (5)
for clamping edge
straight (5)
position monitoring
with, at the side (5)
max clamping force [kN]
max. admissible operating force [kN]
max. temperature [°C]
80 (5)
max. operating pressure [bar]
200 (5)
Item no. CAD datatypetypefunctioningfor clamping edge
Item no.
824035510
CAD data
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
Properties
Item no.
824045510
CAD data
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
Properties
Item no.
824045520
CAD data
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
Properties
Item no.
824055510
CAD data
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
Properties
Item no.
824055520
CAD data
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
Properties
Item no.
824035510
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
position monitoring
with, at the side
max clamping force [kN]
2.4
max. admissible operating force [kN]
25
max. temperature [°C]
80
max. operating pressure [bar]
200
Item no.
824045510
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
position monitoring
with, at the side
max clamping force [kN]
5
max. admissible operating force [kN]
50
max. temperature [°C]
80
max. operating pressure [bar]
200
Item no.
824045520
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
position monitoring
with, at the side
max clamping force [kN]
5
max. admissible operating force [kN]
80
max. temperature [°C]
80
max. operating pressure [bar]
200
Item no.
824055510
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
position monitoring
with, at the side
max clamping force [kN]
11
max. admissible operating force [kN]
120
max. temperature [°C]
80
max. operating pressure [bar]
200
Item no.
824055520
type
wedge clamp
type
clamping with spring force and hydraulic unclamping
functioning
single acting
for clamping edge
straight
position monitoring
with, at the side
max clamping force [kN]
11
max. admissible operating force [kN]
120
max. temperature [°C]
80
max. operating pressure [bar]
200
Accessories (3)
Item no. CAD data Description
Item no.
3829099
CAD data
Description
Connecting cable with pnp right angle plug M8 with 2 LED, cable length 5m as per data sheet G2.140
Item no.
3829139
CAD data
/
Description
Connection cable with plug, 10 m *as per catalogue sheet WZ 2.2450
Item no.
638290980
CAD data
/
Description
Inductive proximity switch type A - compact version M8 *as per catalogue sheet WZ 2.2402
Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
