Series
3.2204-1

Sliding Clamps classic

single acting, with spring return
max. operating pressure 400 bar
clamping force from 19 kN to 78 kN
Sliding Clamps classic
Downloads
Catalogue sheet
DEENFRESIT
Operating instructions
Information Series
Description
3.2204 Sliding clamps classic

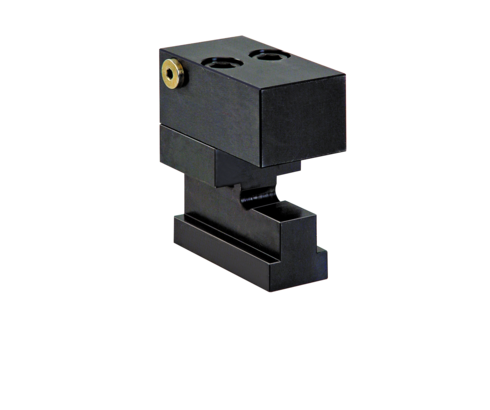

Manual positioning of the sliding clamp in the T-slots of the press ram or bed. Clamping on the die clamping edge by the application of hydraulic pressure to the piston and unclamping by spring force. The “classic” sliding clamp consists of a hydraulic clamping block which will be fixed with two screws to a T-slot adapter.
The clamping block can also be directly screwed without T-slot adapter and can be ordered separately.



Application

The "classic" sliding clamp is a very sturdy hydraulic clamping element, used with low space requirements for clamping and locking on machines and plants, on press bed and ram. The use is possible at ambient temperatures up to a maximum of 120 °C.



Advantages

  • Optimum force transmission
  • Clamping force from 19 kN up to 78 kN
  • Easy mounting
  • Suitable for large clamping edge tolerances
  • No colliding edges when inserting the dies
  • T-slot 18, 22, 28 and 36 mm are available
  • Total stroke 8 and 12 mm
  • Die standardisation with regard to the width and depth is not required
  • Easy to retrofit
Video
Products (7)
type
classic (7)
type
clamping block with T-slot adapter (7)
stroke [mm]
functioning
single acting with spring return (7)
max. operating pressure [bar]
400 (7)
hydraulic ports
pipe thread G1/4 (7)
max. clamping force [kN]
for T-slot [mm]
max. operating temperature [°C]
120 (7)
Item no. CAD datatypetypestroke [mm]functioning
Item no.
822021850
CAD data
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
Properties
Item no.
822022250
CAD data
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
Properties
Item no.
822032250
CAD data
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
Properties
Item no.
822032850
CAD data
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
Properties
Item no.
822042250
CAD data
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
Properties
Item no.
822042850
CAD data
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
Properties
Item no.
822052850
CAD data
type
classic
type
clamping block with T-slot adapter
stroke [mm]
12
functioning
single acting with spring return
Properties
Item no.
822021850
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
max. operating pressure [bar]
400
hydraulic ports
pipe thread G1/4
max. clamping force [kN]
19.6
for T-slot [mm]
18
max. operating temperature [°C]
120
Item no.
822022250
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
max. operating pressure [bar]
400
hydraulic ports
pipe thread G1/4
max. clamping force [kN]
19.6
for T-slot [mm]
22
max. operating temperature [°C]
120
Item no.
822032250
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
max. operating pressure [bar]
400
hydraulic ports
pipe thread G1/4
max. clamping force [kN]
32
for T-slot [mm]
22
max. operating temperature [°C]
120
Item no.
822032850
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
max. operating pressure [bar]
400
hydraulic ports
pipe thread G1/4
max. clamping force [kN]
32
for T-slot [mm]
28
max. operating temperature [°C]
120
Item no.
822042250
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
max. operating pressure [bar]
400
hydraulic ports
pipe thread G1/4
max. clamping force [kN]
50
for T-slot [mm]
22
max. operating temperature [°C]
120
Item no.
822042850
type
classic
type
clamping block with T-slot adapter
stroke [mm]
8
functioning
single acting with spring return
max. operating pressure [bar]
400
hydraulic ports
pipe thread G1/4
max. clamping force [kN]
50
for T-slot [mm]
28
max. operating temperature [°C]
120
Item no.
822052850
type
classic
type
clamping block with T-slot adapter
stroke [mm]
12
functioning
single acting with spring return
max. operating pressure [bar]
400
hydraulic ports
pipe thread G1/4
max. clamping force [kN]
78
for T-slot [mm]
28
max. operating temperature [°C]
120
Accessories (13)
Item no. CAD data Description
Item no.
270010131
CAD data
/
Description
High-pressure hose ND4 / L=600 with wire braiding internal diameter: 4 mm length: 600 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
Item no.
270010133
CAD data
/
Description
High-pressure hose ND4 / L=800 with wire braiding internal diameter: 4 mm length: 800 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
Item no.
270010137
CAD data
/
Description
High-pressure hose ND4 / L=1200 with wire braiding internal diameter: 4 mm length: 1200 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
Item no.
270010141
CAD data
/
Description
High-pressure hose ND4 / L=1600 with wire braiding internal diameter: 4 mm length: 1600 mm external diameter: 9,5 mm ports: at both sides with union nut M16 x 1.5 mm max. operating pressure: 500 bar *as per catalogue sheet WZ 11.3800
Item no.
2754180
CAD data
Description
Bracket to accommodate a sliding clamp without spacer bar for T-slot 18 mm *as per catalogue sheet WZ 3.2202
Item no.
2754220
CAD data
Description
Bracket to accommodate a sliding clamp without spacer bar for T-slot 22 mm *as per catalogue sheet WZ 3.2202
Item no.
2754280
CAD data
Description
Bracket to accommodate a sliding clamp without spacer bar for T-slot 28 mm *as per catalogue sheet WZ 3.2202
Item no.
2754500
CAD data
Description
Spacer bar for bracket sliding clamp for T-slot 18, 22 or 28 mm specify distance dimension “x” when ordering *as per catalogue sheet WZ 3.2202
Item no.
550650003
CAD data
/
Description
Hose holder made from Delrin *as per data sheet WS12.3820
Item no.
827541850
CAD data
Description
Parking station for sliding clamp with bracket and spacer bar for T-slot 18 mm *as per catalogue sheet WZ 3.2202
