Series

Rapid Clamping System with Pneumatic Cylinder

“Pneumatic travelling clamp”, max. operating pressure 10 bar
with single and double-acting clamping elements

Downloads

Catalogue sheet

DE EN FR ES IT

Operating instructions

Available on demand.

Information Series

Description

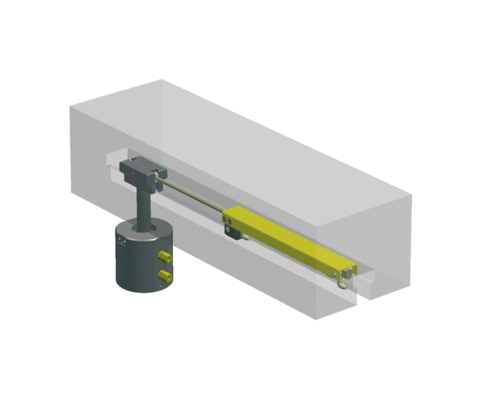

Rapid clamping system with pneumatic cylinder 3.2295

The electrically or pneumatically driven push chain moves the clamping element attached to the rapid clamping system automatically from the parking position to the clamping position at the clamping edge and then back to the parking position.
The T-slot of the machine serves as the guide for the push chain and clamping element. The push chain also serves as the energy chain for accommodating the hydraulic and electric lines of the clamping element.

Applications

automatic clamping of dies on press rams
for dies varying in width

Special features

cost-effective, robust solution for short distances of travel
easy installation using standard clamping elements
for fixing, no modification to the press ram is required
rapid adaptation to various die sizes

Versions

Hollow-piston cylinders, double acting, max. clamping force 115 kN
Hollow-piston cylinders, single acting, max. clamping force 104 kN
Clamping cylinder with mechanical locking, double acting,
max. clamping force 100 kN
Spring clamping cylinder, single acting, max. clamping force 100 kN
Sliding clamp, single acting, max. clamping force 78 kN
Angular clamp, single acting, max. clamping force 66 kN

Application examples

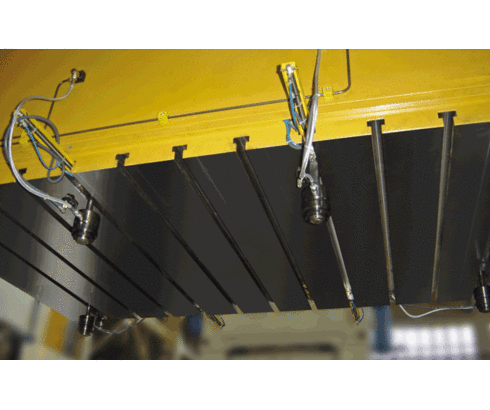

Application example 1

Pneumatic automatic adjustment of the mounted clamping cylinders.
