Information Series
Description

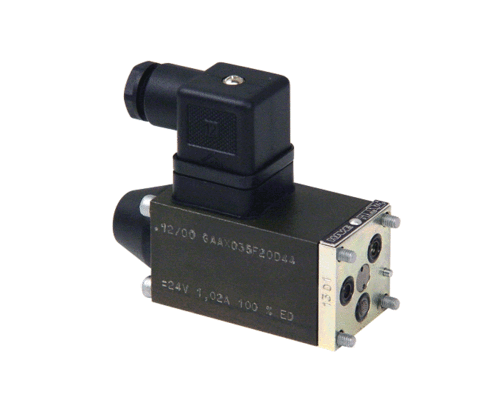

Directional control valve WH1

3/2 directional control valve with leak-free and tight ball-type poppet valves

Compact design by integration of the valve components in the magnetic body.
max. flow rate 8 l/min,
max. operating pressure 400 bar,
magnetic clamping 24 VDC,
temperature range -40°C to +80°,
emergency stop

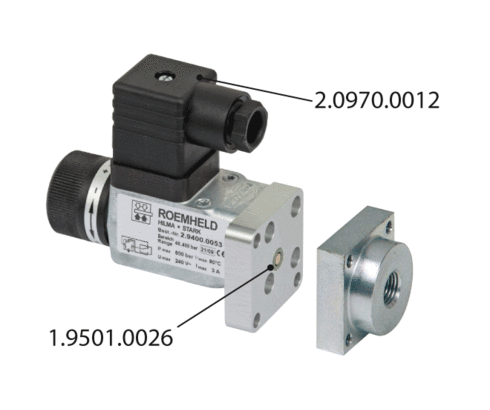

Pressure switch

Mini pressure switch, adjustable as a piston pressure switch

temperature range -40°C to +80°,
max. operating pressure 400 bar (depending on the type).
Versions: HDS and DG

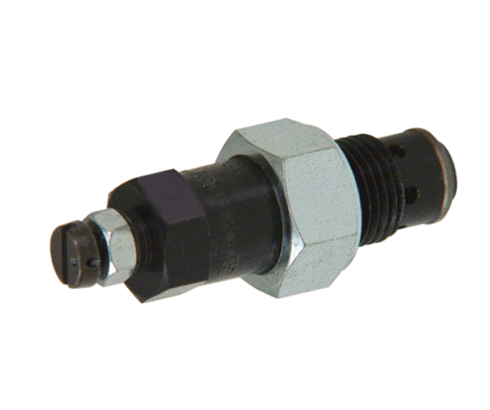

Pressure relief valve

Safety valve to prevent exceeding the maximum admissible pressure and for limiting operating pressures.

Pressure control valve

Pressure control valve for keeping the lower output pressure in the secondary circuit constant without affecting the higher pressure in the primary circuit.
Screw-in type valve in combination with connector block.

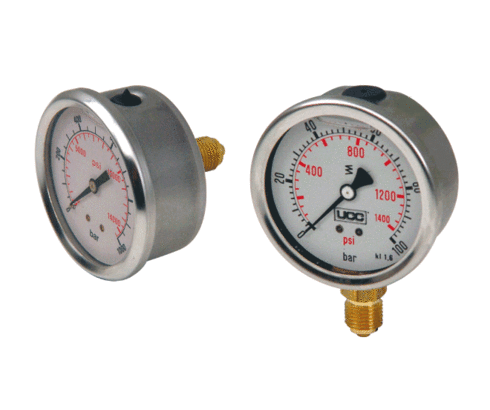

Pressure gauge

with steel tube spring and glycerine filling, Ø 63 mm

Port: G1/4 at the bottom or at the rear

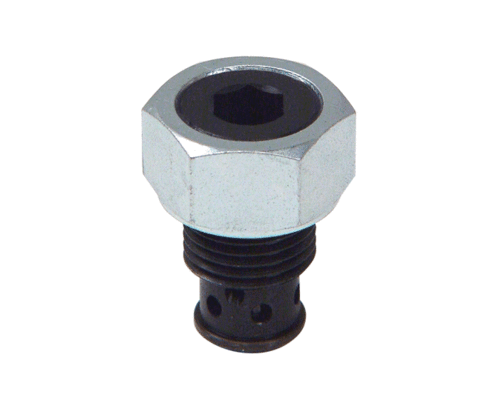

Check valve

Stop valve with free flow in one direction and blocked oil flow in the opposite direction.

Check valve to be installed in the pipe

Check valves with one flow direction.
Housing made from galvanised steel.
Spring-loaded ball-type poppet valve, leakage-free

Hydraulic oil

HLP 32 or HLP 46

Container: 1 or 5 litre

Hydraulic oil Oemeta

fire-resistant

Container: 1, 5 or 20 litre

Products (29)
Loading…
type
type
max. operating pressure [bar]
Item no. CAD datatypetypemax. operating pressure [bar]
Item no.
CAD data
/
type
pressure gauge
type
0 - 600 bar, G1/4 at the bottom
max. operating pressure [bar]
600
Properties
Item no.
CAD data
/
type
pressure gauge
type
0 - 160 bar, G1/4 at the bottom
max. operating pressure [bar]
400
Properties
Item no.
CAD data
/
type
pressure gauge
type
0 - 600 bar, G1/4 on the back
max. operating pressure [bar]
600
Properties
Item no.
CAD data
/
type
directional control poppet valve
type
GZ 3-1 A24
max. operating pressure [bar]
400
Properties
Item no.
CAD data
/
type
directional control poppet valve
type
G 3-1 A24
max. operating pressure [bar]
400
Properties
Item no.
CAD data
/
type
directional control poppet valve
type
WH 1 D
max. operating pressure [bar]
400
Properties
Item no.
CAD data
/
type
directional control poppet valve
type
WH 1 N
max. operating pressure [bar]
400
Properties
Item no.
CAD data
/
type
directional control poppet valve
type
WH 1 R
max. operating pressure [bar]
400
Properties
Item no.
CAD data
/
type
directional control poppet valve
type
WH 1 F
max. operating pressure [bar]
400
Properties
Item no.
CAD data
/
type
directional control poppet valve
type
NBVP 16 Z
max. operating pressure [bar]
400
Properties
Loading…
Item no.
type
pressure gauge
type
0 - 600 bar, G1/4 at the bottom
max. operating pressure [bar]
600
Item no.
type
pressure gauge
type
0 - 160 bar, G1/4 at the bottom
max. operating pressure [bar]
400
Item no.
type
pressure gauge
type
0 - 600 bar, G1/4 on the back
max. operating pressure [bar]
600
Item no.
type
directional control poppet valve
type
GZ 3-1 A24
max. operating pressure [bar]
400
Item no.
type
directional control poppet valve
type
G 3-1 A24
max. operating pressure [bar]
400
Item no.
type
directional control poppet valve
type
WH 1 D
max. operating pressure [bar]
400
Item no.
type
directional control poppet valve
type
WH 1 N
max. operating pressure [bar]
400
Item no.
type
directional control poppet valve
type
WH 1 R
max. operating pressure [bar]
400
Item no.
type
directional control poppet valve
type
WH 1 F
max. operating pressure [bar]
400
Item no.
type
directional control poppet valve
type
NBVP 16 Z
max. operating pressure [bar]
400
Accessories (4)
Item no. CAD data Description
Item no.
CAD data
/
Description
O-ring Ø 5 x 1.5 mm *as per catalogue sheet WZ 11.9200
Item no.
CAD data
/
Description
Plug DIN 43650 plug insert 4 x 90° rotatable *as per catalogue sheet WZ 11.9200
Item no.
CAD data
/
Description
Plug with double LED and 1.5 m cable *as per catalogue sheet WZ 11.9200
Item no.
CAD data
/
Description
Connecting plate for pressure switch HDS for pipe connection G1/4 *as per catalogue sheet WZ 11.9200
