Series
2.1320

Hollow Piston Cylinders

single acting,
with spring return
max. operating pressure 400 bar
Hollow Piston Cylinders
Downloads
Catalogue sheet
DEENFRESIT
Operating instructions
Information Series
Description

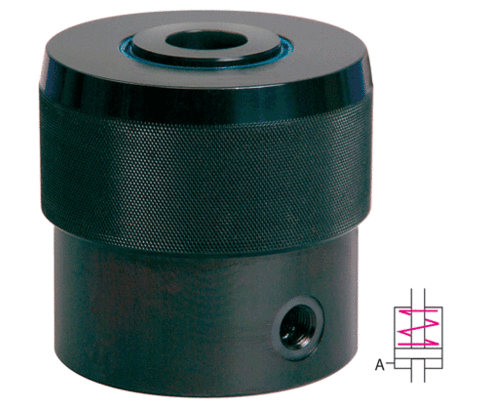

Hollow-piston cylinders 2.1320

single-acting with spring return, as pull or push cylinder.
Installation is possible by insertion or manifold mounting in any position. The clamping force is generated by applying hydraulic pressure to the piston, and unclamping is made mechanically by spring return.
The piston is provided with a through hole and is hardened and ground. The housing of the hollow-piston cylinder is made of high alloy steel, the surface is black oxided.

Video
Products (4)
type
with through hole (4)
stroke [mm]
functioning
single acting with spring return (4)
max. operating pressure [bar]
400 (4)
max. clamping force [kN]
clamping principle
hydraulic clamping - spring unclamping (4)
through hole Ø [mm]
spherical disk
without (4)
Item no. CAD datatypestroke [mm]functioningmax. operating pressure [bar]
Item no.
1323003
CAD data
type
with through hole
stroke [mm]
12
functioning
single acting with spring return
max. operating pressure [bar]
400
Properties
Item no.
1325003
CAD data
type
with through hole
stroke [mm]
12
functioning
single acting with spring return
max. operating pressure [bar]
400
Properties
Item no.
1327003
CAD data
type
with through hole
stroke [mm]
15
functioning
single acting with spring return
max. operating pressure [bar]
400
Properties
Item no.
1329003
CAD data
type
with through hole
stroke [mm]
15
functioning
single acting with spring return
max. operating pressure [bar]
400
Properties
Item no.
1323003
type
with through hole
stroke [mm]
12
functioning
single acting with spring return
max. operating pressure [bar]
400
max. clamping force [kN]
34.8
clamping principle
hydraulic clamping - spring unclamping
through hole Ø [mm]
16.5
spherical disk
without
Item no.
1325003
type
with through hole
stroke [mm]
12
functioning
single acting with spring return
max. operating pressure [bar]
400
max. clamping force [kN]
54
clamping principle
hydraulic clamping - spring unclamping
through hole Ø [mm]
20.5
spherical disk
without
Item no.
1327003
type
with through hole
stroke [mm]
15
functioning
single acting with spring return
max. operating pressure [bar]
400
max. clamping force [kN]
84
clamping principle
hydraulic clamping - spring unclamping
through hole Ø [mm]
24.5
spherical disk
without
Item no.
1329003
type
with through hole
stroke [mm]
15
functioning
single acting with spring return
max. operating pressure [bar]
400
max. clamping force [kN]
137.2
clamping principle
hydraulic clamping - spring unclamping
through hole Ø [mm]
30.5
spherical disk
without
Application examples

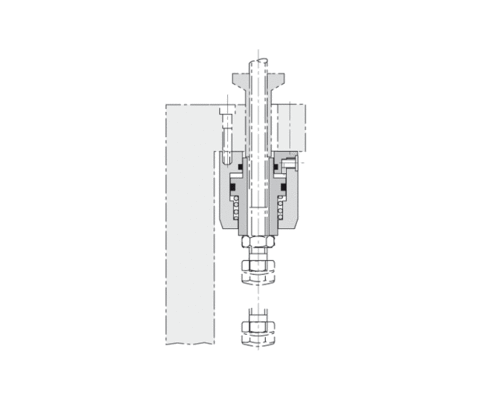

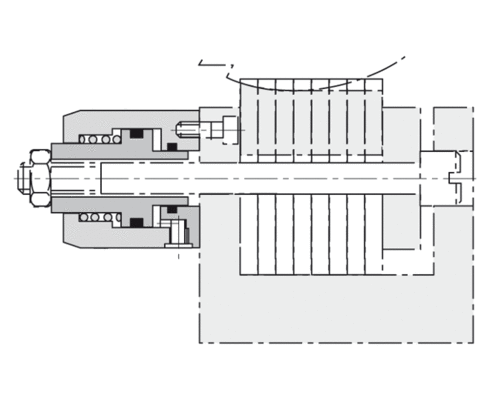

Application example 1

Hollow -piston cylinders 2.1320, single-acting with spring return, as pull or push cylinder. Insertion or manifold mounting in any position.

Error loading CAD data. Please check your internet connection and try again.
Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
