Die Changing Cart RWS, rail-guided

With electric drive and integrated push-pull system
Load of up to 40 t

Application

The die changing cart RWS is used for the transport and the change of pressing and punching dies as well as injection and casting moulds up to a weight of 40 t.

Description

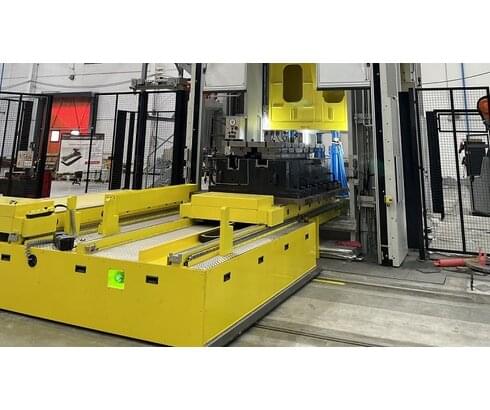

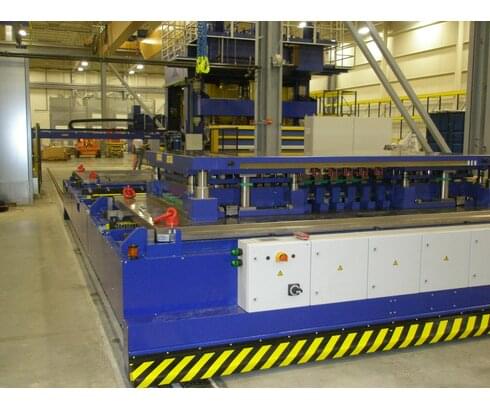

The RWS die changing cart is rail-guided, electrically driven and equipped with a special pull-push system in chain design or with a linear actuator.
The changing platform has stable roller rails to facilitate the insertion of the dies onto the press table.
The cart runs on special round rails with extremely low rolling resistance. They offer precise guidance and are insensitive to dirt. A safety circuit ensures that only the cart in the changing position can move the pull-push system.
To transfer the die to the press, additional consoles are provided to compensate the distance between the press table and the die changing cart.
The RWS die changing cart can link several presses together for a die change, moving back and forth from one press to the next. Standardisation is not necessary. Different die sizes can be easily changed with one system using a standardised base plate.
Semi-automatic and fully automatic die changes are possible thanks to the control system that is integrated in the cart and precise positioning. The complete system is rounded out by a variety of clamping technology solutions in the press.

Advantages
● Safe and gentle transport and changing of the heaviest dies
 ● Linking of several presses with only one changing table
 ● The press is free and can manufacture until the moment the die is changed
 ● Die changing cart with integrated lifting bars and push-pull system
 ● Simple and central operation of the cart with a remote control
