Series
8.18341

Ball Bars, Hydraulic

with lifting of the individual balls - max. load 70 kN/m
max. operating pressure 100 bar
Ball Bars, Hydraulic
Downloads
Catalogue sheet
Operating instructions
Information Series
Description

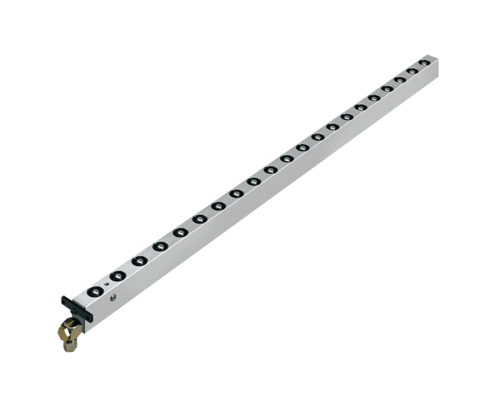

8.18341 Ball bars, hydraulic

max. load 70 kN/m, max. operating pressure 100 bar

Ball bar with hydraulic lifting of the individual balls for medium loads and flexible horizontal movement of the dies.
Oil pressure is applied to lift each ball insert individually. The die positioned on the ball bars is not in contact with the table top and can be easily moved and positioned.



Advantages

  • Easy and safe die change
  • Variant program with many selection possibilities
  • Hydraulic lifting of each individual ball
  • Variable length in a single piece design up to 2900 mm
  • Slot depth, ball spacing and bar length configurable for every application
  • Low weight (version in aluminium)



Select with the Ball and Roller bar configurator
